1. CUTMAC DH Series McLantis paper cutting machine control system is managed by PLC, being featured at the big capacity, reliable performance and 300-thousand-hour memory.
2. USA Industrial Computer, with the features of multi-language and USB interface.
3. Japanese servo-actuator for the feeding system, with the features of small noise, adjustable speed (6m/min-18m/min) and 0.01 of positioning precision.
4. Quick knife changer.
5. The security system offers maximum safety.
Ball Screw Lead Double Guide Structure
Safety Bolt Display Screen
Germany Made Blade Heavy Duty Casting Iron Frame
Cutting PVC Cutting Paper Board

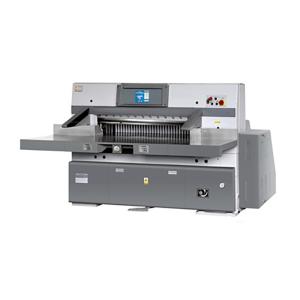

| Model | McLantis Large Format Paper Cutting Machine | |
| 170D | 185D | |
| Max. Cutting Width | 170cm | 185cm |
| Max. Cutting length | 170cm | 155cm |
| Max. Cutting height | 16cm | 16.5cm |
| Max. Clamping pressure | 60000N | 40000N |
| Cutting speed | 45 cuts/min | |
| Main motor power | 5.5kw | 7.5kw |
| Air pump motor | 0.75kw | 1.1kw |
| Sending paper motor | 0.75kw | 1.1kw |
| Weight | 6500kg | 8500kg |
| Overall dimensions | 315x160x120cm | 361×394×177cm |
| Voltage | 380V (three-phase) | |
